Cubicle Spaces Private Limited

CS Round SS Pipe

PRODUCT DESCRIPTION

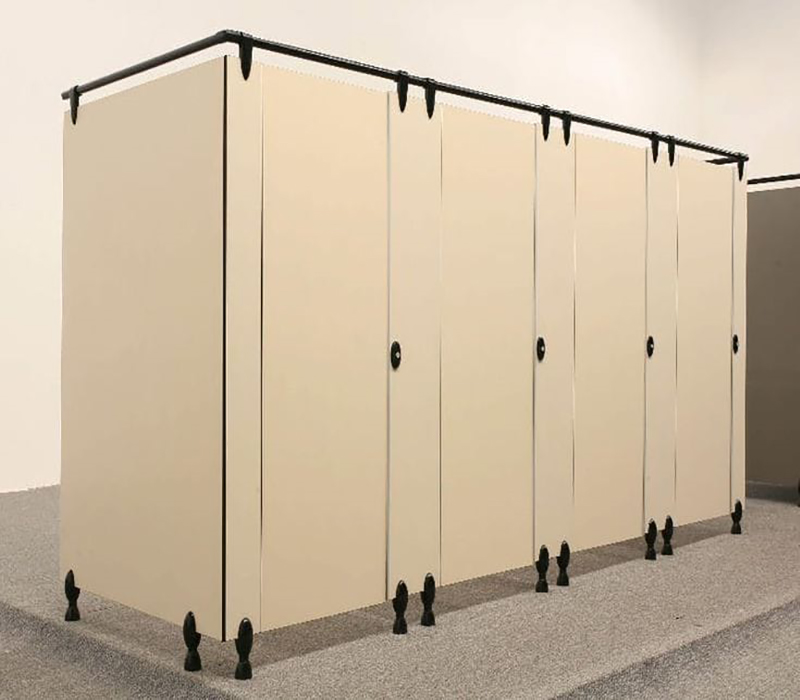

Simple yet contemporary is anonymous with CS Round SS Pipe Evergreen. The model comes with the most extensively used stainless steel hardware coupled with sturdiness of high pressure 12mm or 18mm Compact Laminate. It offers standard adjustable foot along with stainless steel top rail for providing extra strength. The rest of the hardware like the hinges, locks, door knobs and coat hooks are also provided in stainless steel. Hence, making it an elegant and ideal option for heavy traffic areas where functionality matters the most.

Alloy Privacy Indicator

Alloy Privacy Thumb Turn

Stainless Steel Adjustable Foot

90° Upper Joint Stainless Steel Head Rail Corner Connector

Hardware Detailing

Each restroom cubicle is equipped with the following set of hardware fittings:

U Channel
(Stainless Steel 304)
Top Rail
(Stainless Steel 304)
F Channel
(Stainless Steel 304)
Coat Hook
(Stainless Steel 304)
Wc Indicator Lock
(Stainless Steel 304)
Door Knob
(Stainless Steel 304)
Auto Gravity Hinges
(Stainless Steel 304)
SHOE-BOX UP
(Stainless Steel 316)
Tubular Holder
(Stainless steel 304 )
Wall Bracket
(Stainless steel 304 )
Door Stopper
(Allumunium Black
Powder Coated)

Dimensions Detailing

Standard Dimensions General (mm) Physically Challenged (mm)
Width of cubicle 1000 1500
Depth of cubicle 1500 1750
Height of entire cubicle 2035 2035
Width of door 600 900
Height of door 1830 1830
Ground clearance 110 110
